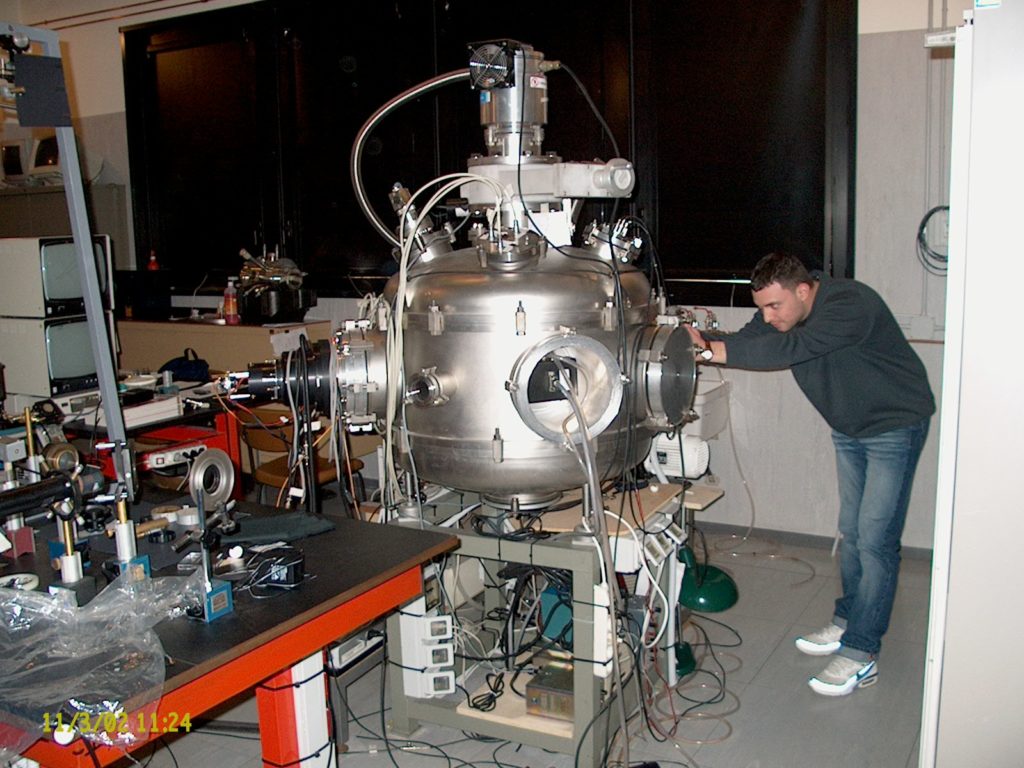

The vacuum bundle is expertly configured for reflectance measurements within vacuum chambers, covering the 200-1100nm spectral range. Key parameters such as layer thickness, composition, surface finish, light transmission, reflectance, and polarization are crucial in vacuum coating processes. Our spectrometer bundle facilitates these measurements using advanced spectroscopy and spectroscopic interferometry techniques. Two vacuum feed-throughs are included in this bundle: one with a 200 µm fiber cable and one with a 600 µm diameter fiber cable.
Typical Applications:
• Coatings
• Plasma monitoring
Plasma Bundle Components:
• Spectrometer: Positioned outside the vacuum chamber, configured for high-resolution reflectance measurements across the 200 – 1100 nm range.
• Light Source: Provides stable and broad-spectrum illumination, essential for accurate reflectance measurements.
• Fiber Optics: 1 optical fiber that delivers light through a vacuum feed-through to the chamber, ensuring precise transmission. 1 reflectance probe located inside the chamber, collects reflected light and transmits it back through another vacuum feed-through for analysis.
• Software: AvaSoft-Full and AvaSoft-All
Example Bundle Setup:
Customizable Options
Every measurement task is unique, and our modular system allows you to tailor the spectrometer setup to your specific needs. Contact us to discuss how we can help you configure the ideal measurement setup for your application.
